Check out the 7x64 Brenneke. It's 2 mm longer, but same concept. I think you could gain a touch more velocity than the 280 with the (.3 wildcat, but it may end up being just about the same thing. The 280 case is 63 MM long versus the 9.3. The 280 AI then would be the best step up from the 280 before you hit belted magnum territory.
Thinking about a redundant wildcat
- Thread starter nhenry
- Start date
Check out the 7x64 Brenneke. It's 2 mm longer, but same concept. I think you could gain a touch more velocity than the 280 with the (.3 wildcat, but it may end up being just about the same thing. The 280 case is 63 MM long versus the 9.3. The 280 AI then would be the best step up from the 280 before you hit belted magnum territory.
Already ahead of you on that front. The 7x64 practically interchangeable with the 280 ballistically. The whole premise of this wildcat idea is to make a wildcat I can seat out to the lands in a standard tikka magazine (3.4"), which the 7x64 cannot typically do without running past mag length.
Since the 9.3's case is 2mm shorter (or more if I trim some off the top), I'd be able to have better performance than a 280 while not being restricted by the magazine like the 280AI, which I did run into when I had a 280AI barrel for my tikka.
Don Fischer
Well-known member
- Joined
- Jun 27, 2017
- Messages
- 3,141
I've only got one wildcatt, only one I ever had. 6.5x06. What I really like is the 6.5 bullets, they are no better and no worse than most any othe bullet. But the thing about the cartridge is case's. I can't buy 6.5x06 loaded ammo that I know of but doesn't matter as I reload my own. I have 30-06 case's coming out my ears they are so common so never a problem finding cases. How common are the european case's your looking to build a wildcatt on?
They're fairly common. I'm going to be looking at Norma cases if I go this route.
What about a 375 Ruger necked down to 280?
Standard bolt faced action. I'd just get a 7 SAUM if I had the magnum
for the sake of redundancy, it has to be. I'm sticking to my parameters though.
- 308 bolt face
- must fit in a Tikka magazine
- short enough to touch the lands while being more powerful than a 284 win (this one's important for load tuning, as you probably guessed)
std7mag
Well-known member
You could use the Weatherby RPM case as the parent.
Essentially a lengthened 284 Win.
So you'd have the 0.473" rim, but 0.500" body.
Giving you increase in case volume over something based on the 06' case even if it is in the improved configuration.
Essentially a lengthened 284 Win.
So you'd have the 0.473" rim, but 0.500" body.
Giving you increase in case volume over something based on the 06' case even if it is in the improved configuration.
I had talked about that earlier in the thread and it's a solid solution, but brass is not readily available and I don't want to make a neck out of a part of it that wasn't supposed to be a neck.
std7mag
Well-known member
How much are you planning on shortening it?
Bear in mind i've made 6.5mm Rem Mag cases from 7mm Rem Mag.
From a forming perspective, a huge change in case length!
Forming a wildcat is, what it is.
Making a neck where there wasn't one is a simple ID ream away.
Or you can OD neck turn.
std7mag
Well-known member
sorry, a drawing without measurements tells me nothing.
Akin to me running a CNC machine going by a drawing with no measurements.
Akin to me running a CNC machine going by a drawing with no measurements.
BackofBeyond
Well-known member
Also on the verge of being released as the 7 PRC.
std7mag
Well-known member
It's been released several years ago.
A colaboration between Gunwerks & Hornady.
It's called the 7mm LRM. (Long Range Magnum)
Proprietary to Gunwerks with dies from Hornady.
p_ham
Well-known member
So I ran some internal ballistics. Barnes 145LRX RE26
284win 3.38OAL: 63.5gr- 3182fps

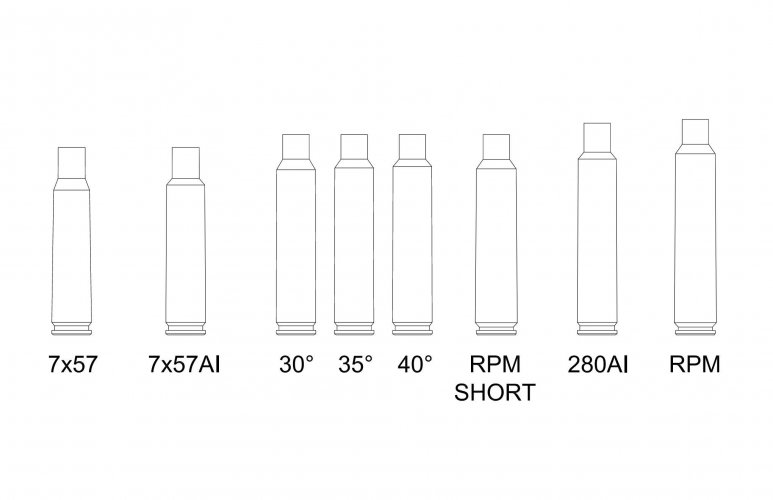

The first drawing, shortened 270 case 3.38OAL- 60.4gr- 3168fps
280AI 3.38OAL- 65.1gr- 3220fps
9.3x62 based 3.38OAL- 62.8gr- 3200fps
284win 3.38OAL: 63.5gr- 3182fps
The first drawing, shortened 270 case 3.38OAL- 60.4gr- 3168fps
280AI 3.38OAL- 65.1gr- 3220fps
9.3x62 based 3.38OAL- 62.8gr- 3200fps
Thanks for running that
std7mag
Well-known member
I'm taking it a 24" barrel length?
And my COAL for 162gr ELDX is 2.995".
Your 3.38" COAL would possibly more appropiate if you were running something like the 190gr Berger or 197gr Sierra.
p_ham
Well-known member
You know, I had the COAL shorter and changed it and forgot to check what the seating depth was at.
Benfromalbuquerque
Well-known member
- Joined
- Jul 15, 2020
- Messages
- 1,621
Wait, woah, plenty of great concepts here, but what about a 6.5mm-300wsm. Like a .264wsm, does anyone already do that? Sounds wicked.
