Reloading Bench
- Thread starter brymoore
- Start date
BackofBeyond
Well-known member
I don't have any pictures, but I can tell you when I rebuild mine, I will set the height of the bench off the bottom of the stroke on the press - be it sitting or standing, pay attention to what that height is... then set the benchtop off that. I built mine too low, so not have to dip my shoulder just a bit to hit the bottom (press all the way up) of the stroke.
I also hit the easy button and caught a 4 drawer tool chest on sale at Home Depot for $100 - i put that under my bench for drawer storage. Works great.
I also hit the easy button and caught a 4 drawer tool chest on sale at Home Depot for $100 - i put that under my bench for drawer storage. Works great.
Gravelyctry
Well-known member

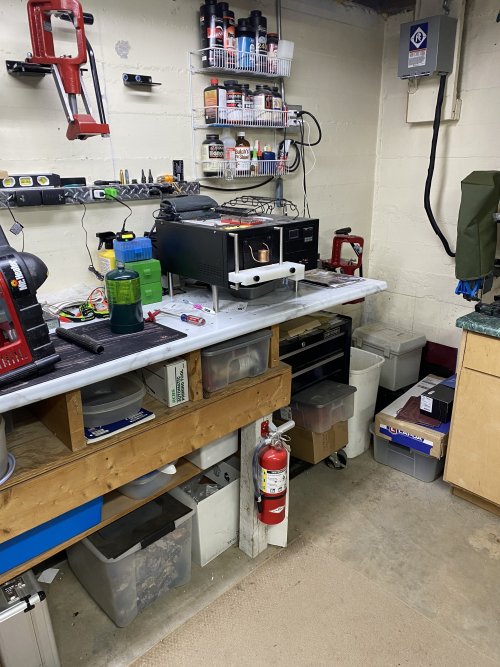

On the bench itself, make it stout. I’ve got 4x4 front legs and the rear anchored into the cement wall. Built with 2x6s and also some compartments for Rubbermaid tubs for storage. The top is actually a layer of 3/4” plywood that’s tied into the frame. On top of that is a piece of regular countertop That I consider sacrificial. The countertop has a gradual rise on the outside edge that helps keep components on the bench in case of a spill.
I also have anchors in the plywood that is underneath the countertop (and through holes in the countertop) so I can easily bolt down bench mounted tools like my shotgun presses, priming tools, swager, vice, barrel vise, etc. I also have a press mount from Inline Fabrication so I can change out my metallic presses pretty easily.
Dont underestimate the need for storage for tools, components, presses, scales, dies, powders, etc. as well as space on your bench. Like fruitsnack above, I use a couple of toolboxes for some of that storage.
Depending on the type and accuracy of the scale you use, fluorescent lights can cause problems with drift. I had that issue and tried adding ferrites and doing other things with no improvement. I replaced my fluorescent bulbs with led tubes and the problem went away.
I also have anchors in the plywood that is underneath the countertop (and through holes in the countertop) so I can easily bolt down bench mounted tools like my shotgun presses, priming tools, swager, vice, barrel vise, etc. I also have a press mount from Inline Fabrication so I can change out my metallic presses pretty easily.
Dont underestimate the need for storage for tools, components, presses, scales, dies, powders, etc. as well as space on your bench. Like fruitsnack above, I use a couple of toolboxes for some of that storage.
Depending on the type and accuracy of the scale you use, fluorescent lights can cause problems with drift. I had that issue and tried adding ferrites and doing other things with no improvement. I replaced my fluorescent bulbs with led tubes and the problem went away.
Attachments
MThuntr
Well-known member
Show me your reloading setups!
Made a good deal on cattle this year and I’m fixing to finally start building my shop. I’m going to start with my 45’x60’ slab and put a 45’ HQ shipping container on one side. This whole container is going to be my gun shop, starting with my reloading bench. I’ve got a ton of equipment and even...
www.hunttalk.com
If I were to do anything differently it would be to raise my bench height up 6 inches
cahunter805
Well-known member
- Joined
- May 27, 2014
- Messages
- 2,525
Lots of good info already given. Be sure to put in some good led lighting and a power strip or 2.
Gravelyctry
Well-known member

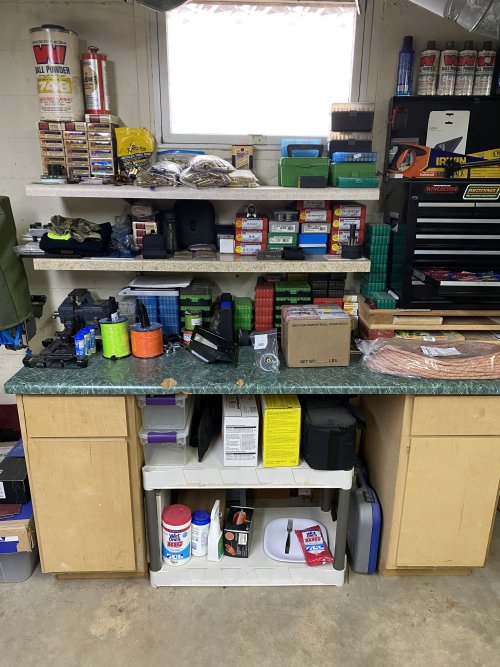

Agree. In my first picture you can compare the height of my reloading bench to the ‘regular’ height of the counter beside it. It’s about 6” higher, and I wish it was a bit more. Keep in mind that the Inline Fab press mount I have is about another 1” above the countertop height.Show me your reloading setups!
Made a good deal on cattle this year and I’m fixing to finally start building my shop. I’m going to start with my 45’x60’ slab and put a 45’ HQ shipping container on one side. This whole container is going to be my gun shop, starting with my reloading bench. I’ve got a ton of equipment and even...
If I were to do anything differently it would be to raise my bench height up 6 inches
Dakotakid
Well-known member
- Joined
- Dec 13, 2014
- Messages
- 816
I use a Seville table, bought it at Sams club a few Black Fridays ago under $200.
Currently looking for a tool chest that will fit below the bench but attached as weight. Storage for bullets and components.
Currently looking for a tool chest that will fit below the bench but attached as weight. Storage for bullets and components.
UltraHD® Workbench, 72" W x 25" D x 37.5" H, Granite Gray
Assembled Dimensions: 72" W x 25" D x 37.5" H Solid polyurethane-coated wood top measures 1.75" thick Finish: granite gray Commercial-grade steel frame Six padded leveling feet 3" casters can be purchased separately here Total weight capacity: 1000 lb. All tools required for assembly are...
www.sevilleclassics.com
JohnCushman
Well-known member
I have my buddy do my reloads

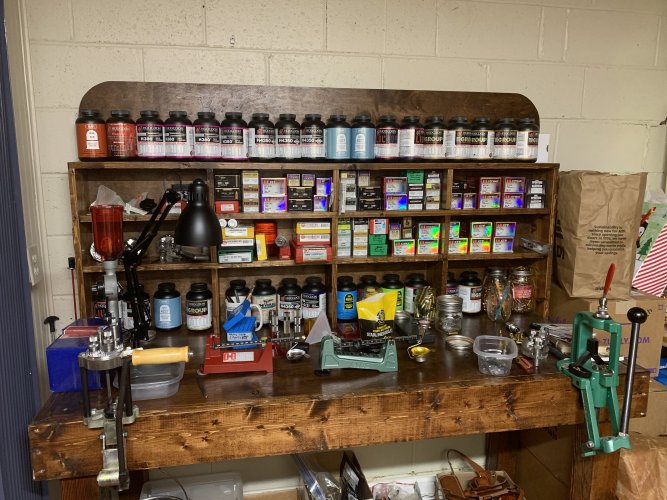

I built it with 4x4 legs supporting a tabletop built of 3/4 inch sanded ply framed by 2x6s. I also built the shelves that attach to the table. I have 2x4s running underneath the table top to firm everything up. I have used it for a few years, and I am happy with it. The boxes and bags are my kids’ Christmas gifts. A great place to hide stuff since I keep the room locked.
Last edited:
